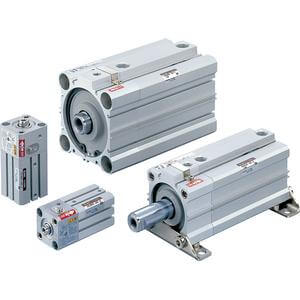

Compact cylinder series CLQ, although equipped with locking function, is designed to minimize the overall length. Overall length of the model is achieved to be the same as that of the CQ2 compact cylinder. CLQ is available in 5 bore sizes ranging from 40 to 100mm and is auto switch capable.

Strengths

Low profile with compact lock unit

Two types of mounting

Locking is possible at any position within the entire stroke Locking direction is selectable

Easy manual unlocking

Technical specifications

Attributes

Type	Compact Cylinder
Cylinder diameter	20 mm
Cylinder stroke	20 mm
Min. temperature	-10 °C
Max. temperature	70 °C

Show UNSPSC/ECL@SS

£ 283.95 ^{excl. VAT}

/ Each

£ 340.74 ^{incl. VAT}

Usually arrives within 14 working days

SMC CDLQB20-20D-F COMPACT CYLINDER WITH LOCK
