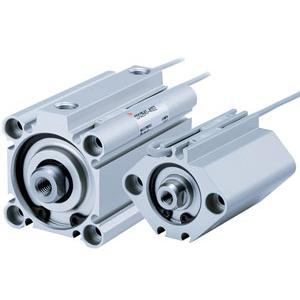

SMC CDQ2B16-5TZ AIR CYLINDER

Compact Cylinder

See technical informationSee documents

References

SMC:CDQ2B16-5TZ
Rubix:113A2271
Manufacturer :CDQ2B16-5TZ
brand logo

Technical specifications

Typesingle acting - spring extend
Cylinder diameter16 mm
Cylinder stroke5 mm
See all Specifications

Documents

Product details : SMC CDQ2B16-5TZ AIR CYLINDER

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

Strengths

•Double acting, single rod, compact cylinder
Port threads: M; Rc, NPT or G
Auto switch capable

Technical specifications

Attributes
Logistics dimensions (L x W x H)29x44x29 mm
Logistic Weight71 g
Typesingle acting - spring extend
Cylinder diameter16 mm
Cylinder stroke5 mm
Max. service pressure10 bar
£ 24.10 excl. VAT
/ Each
£ 28.92 incl. VAT
  • Delivery usually within ( 11 ) days
