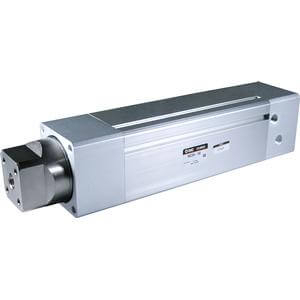

SMC MGZ80TF-150 NON-ROTATING DOUBLE POWER CYLINDER
Double Power Cylinder
References
smc:MGZ80TF-150
rubix:107A9357
Technical specifications
| Cylinder diameter | 80 mm |
|---|---|
| Cylinder stroke | 150 mm |
| Type | Double Power Cylinder |
Product details : SMC MGZ80TF-150 NON-ROTATING DOUBLE POWER CYLINDER
The MGZ series is a non-lube double power air cylinder available in both rotating and non-rotating styles. The MGZ's unique design doubles the pressurized area for extension making the MGZ an ideal cylinder for lifting and pressing operations. The front end lock style MGZ holds the rod when extended.
Strengths
Non-rotating double power cylinder
Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80
Standard strokes from 75 to 1000mm
Port thread types: PT, NPT, G
Optional coil scraper
Auto switch capable
Technical specifications
Attributes
| Cylinder diameter | 80 mm |
|---|---|
| Cylinder stroke | 150 mm |
| Type | Double Power Cylinder |
| Min. temperature | -10 °C |
| Max. temperature | 70 °C |
| Inserted rod height | 398 mm |
Show UNSPSC/ECL@SS
£ 1,206.18 excl. VAT
/ Each
£ 1,447.42 incl. VAT
Delivery usually within ( 24 ) days
