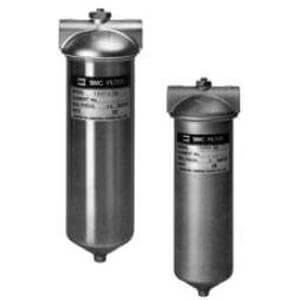

SMC FGDTA-06-T050-B INDUSTRIAL FILTER VESSEL
FGD, Low Flow Rate Industrial Filter, Vessel Series
References
smc:FGDTA-06-T050-B
rubix:393A3398
manufacturer :FGDTA-06-T050-B
Technical specifications
| Threading diameter (inch) | Rc 3/4 '' |
|---|---|
| Filter fineness | 50 µm |
Product details : SMC FGDTA-06-T050-B INDUSTRIAL FILTER VESSEL
Vessel series
Fluid: Water, coolant, water for cleaning, industrial water, coolant, oil, nitrogen gas, carbon dioxide, air (dry)
Flow rate up to 60 l/min
Nominal filtration rating: 0.5 to 120 μm
Suitable for low flow rate.
Strengths
Nominal filtration rating: 0.5 to 120 μm.
Flow rate up to 60 l/min.
Operating pressure up to 1 MPa.
Fluid temperature: Max. 80 °C.
Technical specifications
Attributes
| Threading diameter (inch) | Rc 3/4 '' |
|---|---|
| Filter fineness | 50 µm |
| Type | Industrial Filter |
| Material | Stainless Steel/Iron (Hexagon Head Bolt, Nut, Tension Bolt, Case, Plug, Element Guide);Stainless Steel/Aluminium (Cover);Resin/Rubber (Seal);Stainless Steel (Guide, Joint, Holder, Washer, Spring) |
| Min. temperature | 0 °C |
| Max. temperature | 80 °C |
Show UNSPSC/ECL@SS
£ 470.45 excl. VAT
/ Each
£ 564.54 incl. VAT
Usually arrives within 14 working days
