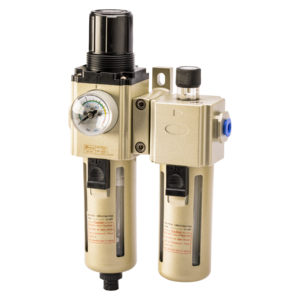

MECALINE 891702 FR+L S2 G1/4IN

Filter Regulator and Lubricator (RF.L) available in 3 different aluminium body sizes with different flow rate ranges, pressure range from 0.15 to 0.9 MPa, Semi-auto drain + Manual drain, pressed-in self-locking mechanism to prevent the abnormal movement of the set pressure caused by external interfere. Pre-installed circular square pressure gauge which with clip and magnifier is used to save installation space, and installation brackets. Filter 40 μm and Aluminium bowl. Attached Lubricator unit with proportional oil dripping structure which adopts gap seal type, the quantity of oil supply can be adjustment precisely changing the position of graduation oil ring indicator. Filling of oil while the lubricator is under pressure is made possible.
