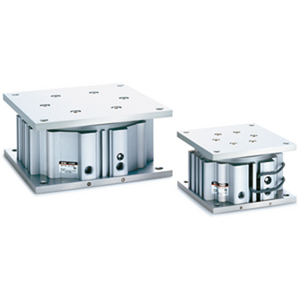

Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body (except port face), allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

Technical specifications

Attributes

Type	guide table
Cylinder diameter	63 mm
Min. temperature	-10 °C
Max. temperature	60 °C
Cylinder stroke	100 mm
Fixation centre-to-centre distance	140 mm
Design size	63

Show UNSPSC/ECL@SS

£ 1,102.78 ^{excl. VAT}

/ Each

£ 1,323.34 ^{incl. VAT}

Usually arrives within 14 working days

SMC MGF63TF-100 CYLINDER

Product details : SMC MGF63TF-100 CYLINDER

Technical specifications
