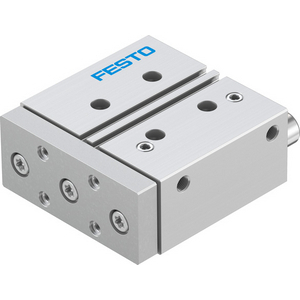

FESTO 170858 GUIDED DRIVE DFM-32-50-P-A-GF
Guided Drive DFM
References
festo:DFM-32-50-P-A-GF
rubix:114A2055
manufacturer :170858
ean:4052568013226
Technical specifications
| Type | guided actuator |
|---|---|
| Cylinder diameter | 32 mm |
Product details : FESTO 170858 GUIDED DRIVE DFM-32-50-P-A-GF
Drive and guide unit in a single housing
Strengths
- Minimal space requirement
- Minimal mounting time
- Choice of compressed air supply ports
- Wide range of mounting options
- Good protection against torsion
- High rigidity thanks to large-diameter guide rods and four plain-bearing bushes
- Maintenance-free
- Minimal mounting time
- Choice of compressed air supply ports
- Wide range of mounting options
- Good protection against torsion
- High rigidity thanks to large-diameter guide rods and four plain-bearing bushes
- Maintenance-free
Applications
- Clamping
- Lifting
- Stopping
- Lifting
- Stopping
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 118x139x121 mm |
|---|---|
| Logistic Weight | 2245 g |
| Type | guided actuator |
| Cylinder diameter | 32 mm |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| Cylinder stroke | 50 mm |
| Max. service pressure | 10 bar |
| Fixation centre-to-centre distance | 40 mm |
Show UNSPSC/ECL@SS
£ 355.85 excl. VAT
/ Each
£ 427.02 incl. VAT
In stock: Next day delivery
