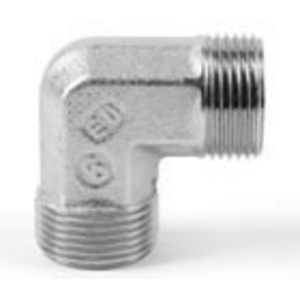

PARKER EO-UNION-ELBOW W14SCFX
Hydraulic Tube Fitting
References
parker hannifin:W14SCFX
rubix:152A8916
Technical specifications
| Material | Steel |
|---|---|
| Type | Hydraulic Tube Fitting |
Product details : PARKER EO-UNION-ELBOW W14SCFX
EO-2 fittings have elastomeric seals on all joints for a hermetically sealed tube joint, leak-free connection of tubes and components in hydraulic systems. For reliable function of the entire unit. Design based on DIN 3861, DIN 2353, ISO 8434-1. EO-2 fittings are suitable for high-pressure applications. Static compression also eliminates air ingress into the fluid system under vacuum conditions.
Strengths
•Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences These features extend the range of applications
High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications
High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications
Applications
Automotive;Defence;Energy;Environment;Industrial;Infrastructure;Machine Tools;materials Handling;Mobile;Oil and Gas;Power Generation;Process;Transportation;Water;General Hydraulic
Technical specifications
Attributes
| Material | Steel |
|---|---|
| Type | Hydraulic Tube Fitting |
| Min. temperature | -40 °C |
| Max. temperature | 250 °C |
| Exterior tube diameter | 14 mm |
Show UNSPSC/ECL@SS
£ 18.16 excl. VAT
/ Each
£ 21.79 incl. VAT
Usually arrives within 14 working days
