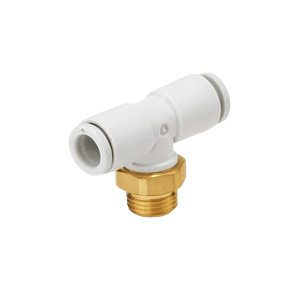

SMC KQ2T08-02S FITTING
KQ2 One-touch Male Branch Tee
References
smc:KQ2T08-02S
rubix:214A2115
Technical specifications
| Connection 1 | 8 |
|---|---|
| Connection 2 | R1/4 |
Product details : SMC KQ2T08-02S FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Technical specifications
Attributes
| Logistic Weight | 22 g |
|---|---|
| Connection 1 | 8 |
| Connection 2 | R1/4 |
| Type of threading | R |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | Brass (Body, Stud, Guide);Stainless Steel 304 (Chuck, Guide, Gasket);Polybutylene Terephthalate (Body, Guide);Acrylonitrile Butadiene Rubber (O-Ring, Seal, Gasket);Polyoxymethylene (Collet, Release Button);Polypropylene (Body) |
Show UNSPSC/ECL@SS
£ 5.92 excl. VAT
/ Each
£ 7.10 incl. VAT
Delivery usually within ( 3 ) days
