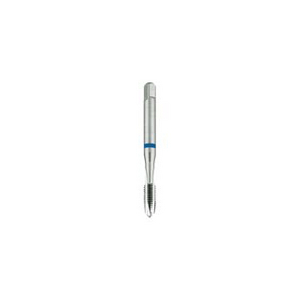

WALTER 234104-UNF3/8 ADVANCED MACHINE TAPS HSS-E 5078598
Machine Tap
References
walter prototyp:234104-UNF3/8
rubix:276A0168
manufacturer :5078598
ean:4042446030704
Technical specifications
| Threading (inch) | unf |
|---|---|
| Threading diameter (inch) | unf 3/8 in - 24 |
| No. of threads per inch | 32 |
Product details : WALTER 234104-UNF3/8 ADVANCED MACHINE TAPS HSS-E 5078598
ALTIUS
Strengths
•For long-chipping materials
Applications
Blind Hole Thread
Technical specifications
Attributes
| Threading (inch) | unf |
|---|---|
| Threading diameter (inch) | unf 3/8 in - 24 |
| No. of threads per inch | 32 |
| Total length | 100 mm |
| Body material | hss-e |
| Coating | uncoated |
| Tolerance | 3b |
| Drilling diameter | 9.525 mm |
| Tail diameter | 10 mm |
| Square drive adapter | 8 mm |
| Direction of threading | right |
| Material | high speed steel-e-pm |
| Angle of helix | 25 ° |
Show UNSPSC/ECL@SS
£ 91.87 excl. VAT
/ Each
£ 110.24 incl. VAT
Usually arrives within 14 working days
