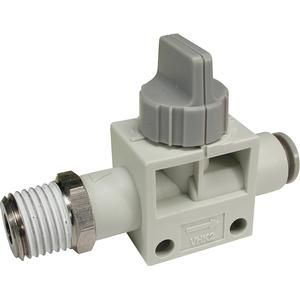

SMC VHK2-04S-10F 4 PORT HAND VALVE

Finger valve series VHK has a large effective area of 2.0 to 17.5mm². This series begins with a minimum tube O.D of ø4. The valve direction clearly indicates whether the valve is open or closed (shut to open is counter- clockwise). Classification of knob by color difference facilitates distinction between 2 port valves (gray) and 3 port valves (blue). The optional flame resistant model's knob, whether using the 2 or 3 port valve, is red.

•This product is being discontinued and will be replaced by VHK-A (https://www.smc.eu/en-eu/products/~164675~cfg) series.
•Finger valve, standard
•2 or 3 port available
•Effective area: 2.0 to 17.5mm²
•Max. operating pressure: 1.0MPa
•Fluid: air

Size: 2 (2 Port Valve)
Model: 04S-10F (P Side Port Size 1/2 - A Side Port Size Ø 10 mm)
Knob Color: 2 Port Valve
w/Exception of P Port 11F and A Port 11F/36S Valve Gray:
Bracket: None
