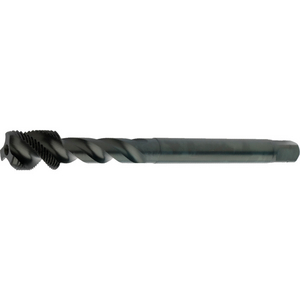

DORMER EX11M8X.75 TAP M8 X 0.75 MM 5973662
MF Machine Tap Spiral Flute 45°
References
dormer:EX11M8X.75
rubix:2019330
ean:7320760149997
Technical specifications
| Threading diameter | 8 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 80 mm |
Product details : DORMER EX11M8X.75 TAP M8 X 0.75 MM 5973662
HSS-E Machine thread cutter for fine metric thread steam-tempered DIN 374 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Stainless steel and cast iron.
Strengths
Premium substrate with Steam Oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Applications
Machining steel soft steel (<120 HB <400 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Technical specifications
Attributes
| Threading diameter | 8 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 80 mm |
| Thread depth | 13 mm |
| Body material | hss-e |
| Tolerance | 6h |
| Type | metric blind bores |
| With cooling spray | no |
| Direction of threading | right |
| Drilling diameter | 7.3 mm |
| Tail diameter | 6 mm |
| Square drive adapter | 4.9 mm |
| Coating | steam tempered |
Show UNSPSC/ECL@SS
£ 38.22 excl. VAT
/ Each
£ 45.86 incl. VAT
Usually arrives within 14 working days
