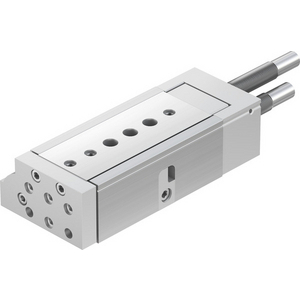

FESTO 544050 MINI SLIDE DGSL-25-50-Y3A
Mini slide, metric DGSL
References
festo:DGSL-25-50-Y3A
rubix:114A1591
manufacturer :544050
ean:4052568183936
Technical specifications
| Type | Mini Slide |
|---|---|
| Cylinder diameter | 32 mm |
Product details : FESTO 544050 MINI SLIDE DGSL-25-50-Y3A
Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit
Strengths
- High load capacity and positioning accuracy
- Maximum movement precision thanks to ground-in ball bearing cage guide
- Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
- Variants with clamping unit or end-position locking for fixing the guide slide
- Wide variety of mounting and attachment options
- Compact design
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 340x115x205 mm |
|---|---|
| Logistic Weight | 3698 g |
| Type | Mini Slide |
| Cylinder diameter | 32 mm |
| Min. temperature | 0 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 50 mm |
| Max. service pressure | 8 bar |
| Fixation centre-to-centre distance | 20 mm |
| Design size | 32 |
Show UNSPSC/ECL@SS
£ 965.20 excl. VAT
/ Each
£ 1,158.24 incl. VAT
Delivery usually within ( 2 ) days
