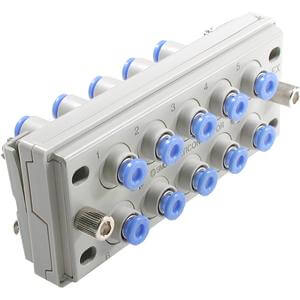

SMC KDM10-06 MULTI CONNECTOR
Multi-Connector
References
smc:KDM10-06
rubix:116A6467
Technical specifications
| Connection 1 | 6 mm |
|---|---|
| Material | pom (plug case, socket case);spcc plated (plate, bracket);pbt, c3604bd (body);304 stainless steel (chuck);304 stainless steel, pom (guide);pom (collet, release button);nbr (seal);swrm (clamp bolt, screw for bracket, cross-recessed head machine screw);304 stainless steel (type e snap ring) |
Product details : SMC KDM10-06 MULTI CONNECTOR
Rectangular multi-connector series KDM has substantial reduction in mounting space in comparison with a model requiring many union joints for panels and partitions, this model needs only a small space. KDM is suitable for use with positive pressure and vacuum. It is possible to create a multi-connector with mixed tube sizes.
•Rectangular multi-connector
•Connecting tubing: 10, 20
•Substantial reduction in mounting space
•One-touch connection/disconnection of tubing
No. of Connecting Tubes: 10
Tubing O.D.: ø6
•Connecting tubing: 10, 20
•Substantial reduction in mounting space
•One-touch connection/disconnection of tubing
No. of Connecting Tubes: 10
Tubing O.D.: ø6
Technical specifications
Attributes
| Connection 1 | 6 mm |
|---|---|
| Material | pom (plug case, socket case);spcc plated (plate, bracket);pbt, c3604bd (body);304 stainless steel (chuck);304 stainless steel, pom (guide);pom (collet, release button);nbr (seal);swrm (clamp bolt, screw for bracket, cross-recessed head machine screw);304 stainless steel (type e snap ring) |
| Profile | kdm |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
Show UNSPSC/ECL@SS
£ 80.93 excl. VAT
/ Each
£ 97.12 incl. VAT
Delivery usually within ( 4 ) days
