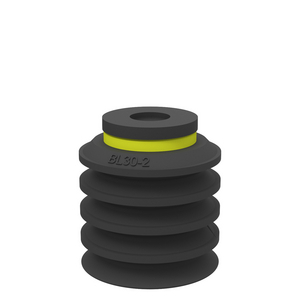

PIAB BL30-2.10 CUP 0101117
Multibellows suction cups BL-2 Chloroprene
See technical informationSee documentsReferences
Piab:0101117
Rubix:121A1193
Manufacturer :0101117
Documents
Product details : PIAB BL30-2.10 CUP 0101117
The BL-2 chloroprene cup have a soft, flexible lip and are suitable for bags that are not too tightly packed. It's four bellows offer good level compensation. Available in diameters from 20 to 50 mm.
Strengths
Optimized for high-flow bag handling
Made from high-quality chloroprene
Secure, non-damaging grip on bags
Suitable for level adjustment.
Lifting movement to separate small and thin objects.
Less suitable when the lifting force is parallel to the surface of the object.
Applications
Bags, sacks and bundles;Bag and pouch handling
Technical specifications
Attributes
| Material | chloroprene (cr) |
|---|---|
| Diameter | 30 mm |
| Shape | round |
| Type | without fittings |
| Min. temperature | -40 °C |
| Max. temperature | 110 °C |
Show UNSPSC/ECL@SS
£ 12.10 excl. VAT
/ Each
£ 14.52 incl. VAT
- Usually arrives within 14 working days
