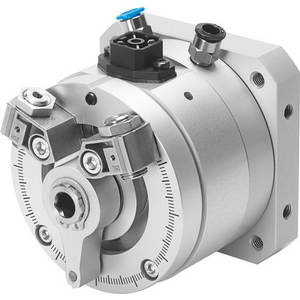

Semi-rotary drive DSMI-40-270-A-B with integrated displacement encoder. Optional endPosition sensing via Proximity sensors type SME/SMT-10F-...-KL. Rotation angle adjustment range=0 - 270 deg, Stroke shortening in the end-Positions=5 °, Smallest Positioning stroke=(* 5° for Positioning, * 15° with Soft Stop), Piston diameter=40 mm, Swivel angle=0 - 272 deg

Technical specifications

Attributes

Logistic Weight	4330 g
Type	Rotary Actuator
Application	Elastic Cushioning Elements;Shock Absorbers;Soft Stop Applications
Max. service pressure	10 bar
Fixation centre-to-centre distance	105 mm
Min. temperature	-10 °C
Max. temperature	60 °C

Show UNSPSC/ECL@SS

£ 1,789.85 ^{excl. VAT}

/ Each

£ 2,147.82 ^{incl. VAT}

In stock: Next day delivery

FESTO 561691 SEMI-ROTARY DRIVE DSMI-40-270-A-B

Product details : FESTO 561691 SEMI-ROTARY DRIVE DSMI-40-270-A-B
