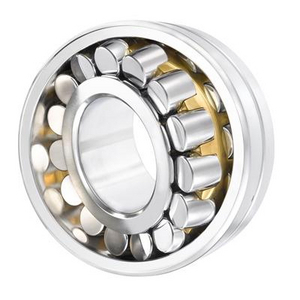

SNR 22308EF800 SPHERICAL ROLLER BEARING

SNR double row spherical roller bearing

See technical information

References

SNR:22308EF800
Rubix:204A5274
EAN:3413520085186
brand logo

Technical specifications

Inner diameter40 mm
Outer diameter90 mm
Width33 mm
See all Specifications

Product details : SNR 22308EF800 SPHERICAL ROLLER BEARING

Double row spherical roller bearing, for applications with vibrations, solid monobloc cage, groove and lubrication openings on outer ring, clearance class 4 special version
Spherical roller bearing, main dimensions according to DIN 635, premier with circumference groove and lubrication holes in the outer ring, cylindrical bore, not sealed.

Technical specifications

Attributes
Logistics dimensions (L x W x H)104x104x38 mm
Logistic Weight1040 g
Inner diameter40 mm
Outer diameter90 mm
Width33 mm
Bearing Clearancec4 special
Cagebrass
Sealingopen
Reference speed5800 rpm
Limit speed7400 rpm
Basic static load, radial - C0r152000 N
Basic dynamic load, radial - Cr169000 N
£ 90.93 excl. VAT
/ Each
£ 109.12 incl. VAT
  • Delivery usually within ( 3 ) days
