SANDVIK R216.24-10030CAP10G1610 SC MILLING CM PLURA 2 5742910

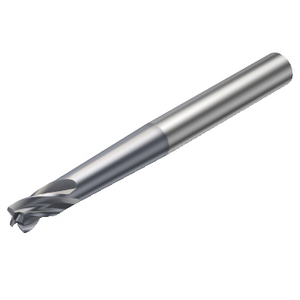

Solid-carbide monobloc CoroMill® Plura milling cutter for surfacing and dressing R216.24-10030CAP10G1610
See technical informationReferences
Sandvik Coromant:R216.24-10030CAP10G1610
Rubix:319A7741
Manufacturer :5742910
Technical specifications
| Diameter | 10 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 12 mm |
Product details : SANDVIK R216.24-10030CAP10G1610 SC MILLING CM PLURA 2 5742910
Solid-carbide CoroMill® Plura end mill for hard milling

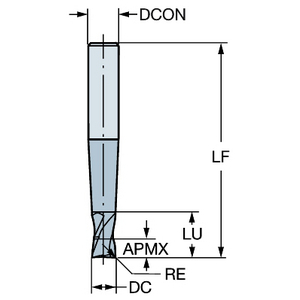

Technical specifications
Attributes
| Diameter | 10 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 12 mm |
| Number of teeth | 4 |
| Length of cut | 10 mm |
| Total length | 125 mm |
| Centre cut | yes (ccc=true: centre cutting capability) |
| Cutting material | carbide |
| Coating | pvd tialn |
| Type | square |
| Angle of helix | 30 ° |
| Machining material | hardened steel (43-63 hrc) and steel & stainless steel (≤48 hrc) |
| Capacity length | 15 mm |
| Cutting angle | 2 ° |
Show UNSPSC/ECL@SS
£ 177.83 excl. VAT
/ Each
£ 213.40 incl. VAT
- Usually arrives within 14 working days
