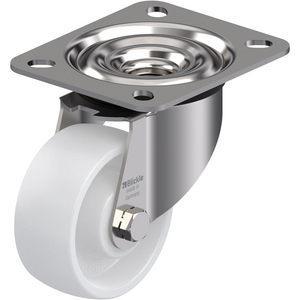

BLICKLE LEX-PO75XR ST/STEEL SWIVEL CASTOR


Stainless steel swivel castor

References
blickle:LEX-PO 75XR
rubix:264A3284
manufacturer :511246
ean:4047526511241
brand logo
brand logo
Technical specifications
Load capacity150 kg
Wheel diameter75 mm
Wheel width32 mm
See all Specifications

Product details : BLICKLE LEX-PO75XR ST/STEEL SWIVEL CASTOR


Bracket: LEX series

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process


Wheel: POEV series

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black


Other features:

  • small thread guard, with additional, ball bearing seal
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C

Technical specifications


Attributes
Logistic Weight513 g
Load capacity150 kg
Wheel diameter75 mm
Wheel width32 mm
Wheel housing/rim materialPolyamide
Running sole/tire materialPolyamide
Min. temperature-25 °C
Max. temperature70 °C
Total height100 mm
Type of bearingRoller bearing
Running sole / tire colourBeige
Plate width85 mm
Plate length100 mm
100 mm
32 mm
Show UNSPSC/ECL@SS
£ 44.37 excl. VAT
/ Each
£ 53.24 incl. VAT
  • Usually arrives within 14 working days
