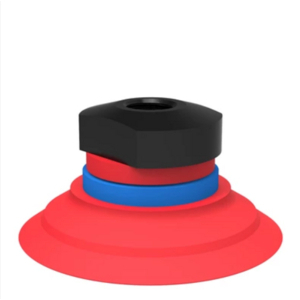

PIAB 0101753 S.F50-2S50.NS18F.01 SUCTION CUP F50 -2.20.05AG
Suction cup F50-2 Silicone, 1/8" NPSF female, with mesh filter
References
piab:0101753
rubix:233A8593
Technical specifications
| Material | Silicone |
|---|---|
| Diameter | 53 mm |
| Shape | Flat |
Product details : PIAB 0101753 S.F50-2S50.NS18F.01 SUCTION CUP F50 -2.20.05AG
Suitable for flat surfaces such as cardboard, metal or glass sheets, and porous materials. Stops prevent deformation of handled objects, preventing them from being sucked into the suction cups. The suction cups are extremely stable, with very little crushing play. Also suitable when the lifting force is parallel to the surface, thanks to the stops which reinforce friction.
Strengths
Good stability and low crushing play
Stops under the suction cup skirt limit deformation of handled objects and increase friction
Stops under the suction cup skirt limit deformation of handled objects and increase friction
Applications
Suitable for flat surfaces.
Recommended when the lifting force is parallel to the contact surface.
Recommended when the lifting force is parallel to the contact surface.
Technical specifications
Attributes
| Material | Silicone |
|---|---|
| Diameter | 53 mm |
| Shape | Flat |
| Type | F |
| Metrical Diameter | 54.6 mm |
Show UNSPSC/ECL@SS
£ 25.02 excl. VAT
/ Each
£ 30.02 incl. VAT
Usually arrives within 14 working days
