OPTIBELT V BELT X22 14586847

SUPER TX Classical V-Belt

See technical information

References

Optibelt:X22 X 1458
Rubix:103A8829
Manufacturer :1757687
EAN:4014486096781
brand logo

Technical specifications

Profilecx
Belt designationcx55
Outer length1488 mm
See all Specifications

Product details : OPTIBELT V BELT X22 14586847


Versatile use

The advantages of the optibelt SUPER TX M=S V-belts always come into their own where extremely small pulley diameters, high speeds, extraordinary power requirements and higher ambient temperatures make the use ofwrapped V-belts seem uneconomical and not sensible.


High-quality

Rubber compounds combined with low-stretch tension cords ensure high power transmission and increased service life.


M=S Set constant

optibelt SUPER TX M=S V-belts can be used without measurement and ensure a wide performance range with high efficiency.

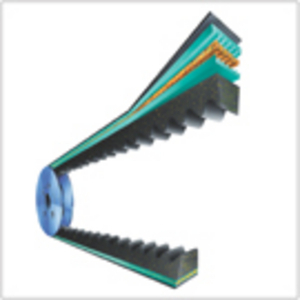

Raw edge belts, cogged

Strengths

  • Low stretch
  • High power transmission
  • M=S Set Constant - can be used in sets without further measurement
  • Extreme transverse rigidity
  • Improved abrasion resistance
  • Temperature range -30°C to +90°C
  • Sophisticated material technology
  • Outstanding efficiency
  • Electrically conductive
  • Extremely small pulley diameters
  • Allows drive ratios up to 1:12
  • Technical specifications


    Attributes
    Logistics dimensions (L x W x H)34x186x186 mm
    Logistic Weight402 g
    Profilecx
    Belt designationcx55
    Outer length1488 mm
    Interior length1400 mm

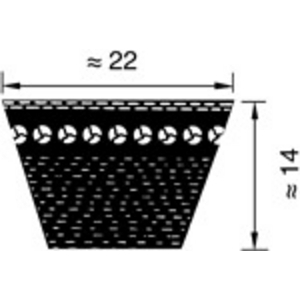

    Upper width22 mm
    Height14 mm
    Pitch length1458 mm
    Lower width12.3 mm
    £ 26.48 excl. VAT
    / Each
    £ 31.78 incl. VAT
    • Usually arrives within 14 working days
