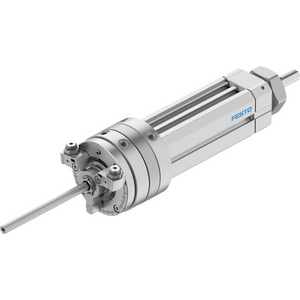

FESTO 556603 SWIVEL/LINEAR UNIT
Swivel/linear unit DSL
References
festo:DSL-16-80-270-P-A-S20-KF-B
rubix:390A8563
manufacturer :556603
ean:4052568201470
Technical specifications
| Type | Swivel Actuator Unit |
|---|
Product details : FESTO 556603 SWIVEL/LINEAR UNIT
Ideal for screw-in movements: the combination of swivel unit and linear cylinder with individually or simultaneously controllable motion
Strengths
- Rotary and linear motion can be controlled individually or simultaneously
- High repetition accuracy
- With plain or recirculating ball bearing guide
- Through piston rod
Technical specifications
Attributes
| Logistic Weight | 1070 g |
|---|---|
| Type | Swivel Actuator Unit |
| Cylinder stroke | 80 mm |
| Max. service pressure | 8 bar |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 1,790.07 excl. VAT
/ Each
£ 2,148.08 incl. VAT
Usually arrives within 14 working days
