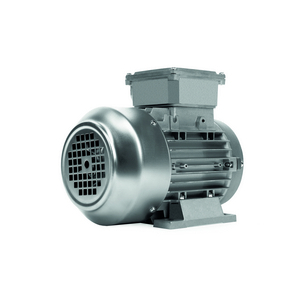

MECALINE 873361 ALUMINIUM B3 IE3 2 POLE MOTOR 1.5K2P90B3IE3A3
3 Phase AC Motor
References
mecaline:873361
rubix:45034783
ean:3660338269783
Technical specifications
| Power | 1.5 kW |
|---|---|
| Voltage | 230/400 V |
| Speed | 3000 rpm |
Product details : MECALINE 873361 ALUMINIUM B3 IE3 2 POLE MOTOR 1.5K2P90B3IE3A3
Asynchronous electric motors of mounting B3, B5 and B14 in aluminum or cast iron
Protection index IP55. Class F insulation (155ºC) / Temperature Rise B
Efficiency levels:
∙ IE2 from 0.12 kW to 0.55 kW
∙ IE3 from 0.55 kW to 132kW
Standard voltage of 230/ 400v up to 7.5 kW, 400 / 690v above
Technical specifications
Attributes
| Power | 1.5 kW |
|---|---|
| Voltage | 230/400 V |
| Speed | 3000 rpm |
| Material | ALUMINIUM |
| Shaft Height | 90 mm |
| Number of poles | 2 |
| Efficiency class | IE3 |
| Degree of protection (IP) | IP55 |
| Mounting typ | B3 |
| Fixation | B3 |
| Execution | 90S |
Show UNSPSC/ECL@SS
£ 168.85 excl. VAT
/ Each
£ 202.62 incl. VAT
Usually arrives within 14 working days
