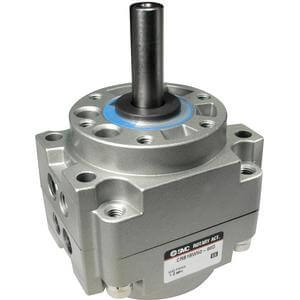

SMC CRB1BK50-90D ROTARY ACTUATOR

Torque up to 150 Nm
Rotating angles: 90°, 100°, 180°, 190°, 270°, 280°
Many variations of shaft-end shape (7 types)
Port location can be selected: Side or Axial ported
Direct/Foot mounting
Many made to order options available.

•Rotary actuator, vane type

Compact, space saving body

Direct mount applications possible

Highly reliable

Body side and axial direction ports

Unrestricted auto switch mounting positions

Magnet: None
Mounting: B (Basic)
Shaft Type: K (Double round shaft)
Body Size: 50mm
Rotation Angle, Vane: 90D (Rotation Angle
Vane Style: Double)
Port Location: Side
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Port Threads: Rc
