GUHRING 05582 020.000 END MILL SOLID CARBIDE 20.000MM H10 TYPE N FIRE
End mill carbide
See technical informationReferences
Gühring:05582 020.000
Rubix:223A4856
Product details : GUHRING 05582 020.000 END MILL SOLID CARBIDE 20.000MM H10 TYPE N FIRE
Design: Ultra-fine grit solid carbide, with centre cut.
Cutting speed approx. 50% higher than with non-coated tools. Dry machining possible. Air cooling recommended.
Application: Can be used for peripheral milling as well as for universal machining. For milling depths up to 3 x D.Can also be used for trimming and finishing milling. Can be used for rough grinding, slot cutting and finishing milling. The irregular spiral lead 35°/38° results in particularly smooth running and thus very good surface on the workpiece. A much longer tool life is achieved than with conventional tools, as well as maximum stability during machining. In addition, feeds higher by up to 60% can be realized.
Cutting speed approx. 50% higher than with non-coated tools. Dry machining possible. Air cooling recommended.
Application: Can be used for peripheral milling as well as for universal machining. For milling depths up to 3 x D.Can also be used for trimming and finishing milling. Can be used for rough grinding, slot cutting and finishing milling. The irregular spiral lead 35°/38° results in particularly smooth running and thus very good surface on the workpiece. A much longer tool life is achieved than with conventional tools, as well as maximum stability during machining. In addition, feeds higher by up to 60% can be realized.
Solid carbide milling cutters
Design: With centre cut, suitable for drilling.
Application: Can be used for peripheral milling as well as for universal machining. Can also be used for trimming and finishing milling. Can be used for rough grinding, slot cutting and finishing milling. The irregular helical pitch results in particularly smooth running and thus very good surface on the workpiece.
Design: With centre cut, suitable for drilling.
Application: Can be used for peripheral milling as well as for universal machining. Can also be used for trimming and finishing milling. Can be used for rough grinding, slot cutting and finishing milling. The irregular helical pitch results in particularly smooth running and thus very good surface on the workpiece.

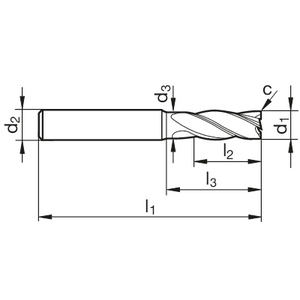

Technical specifications
Attributes
| Diameter | 20 mm |
|---|---|
| Type of tail | straight |
| Tail diameter | 20 mm |
| Number of teeth | 4 |
| Length of cut | 65 mm |
| Total length | 150 mm |
| Centre cut | yes |
| Cutting material | carbide |
| Coating | fire |
| Type | ratio end mill |
| Angle of helix | 35 ° |
| Machining material | cast iron;steel |
| Capacity length | 65 mm |
| Cutting angle | 45 ° |
Show UNSPSC/ECL@SS
£ 504.88 excl. VAT
/ Each
£ 605.86 incl. VAT
- Usually arrives within 14 working days
