SKF SPHERICAL ROLLER BEARING 23164CCK/W33
Spherical roller bearing SKF
References
skf:23164 CCK/W33
rubix:104A9905
manufacturer :36081
ean:7316570582840
Technical specifications
| Inner diameter | 320 mm |
|---|---|
| Outer diameter | 540 mm |
| Width | 176 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23164CCK/W33

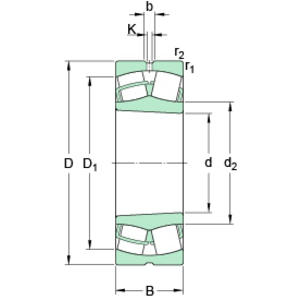

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 176x540x540 mm |
|---|---|
| Logistic Weight | 160000 g |
| Inner diameter | 320 mm |
| Outer diameter | 540 mm |
| Width | 176 mm |
| Bearing Clearance | CN |
| Series | 231 C |
| Reference speed | 850 rpm |
| Limit speed | 1100 rpm |
| Basic static load, radial - C0r | 6000000 N |
| Basic dynamic load, radial - Cr | 3280000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 5,742.00 excl. VAT
/ Each
£ 6,890.40 incl. VAT
Usually arrives within 14 working days
