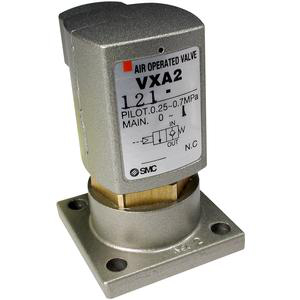

SMC VXA2121-00-1 AIR OPERATED 2 PORT VALVE

Direct air operated, 2 and 3 port valve series VXA can be used with a wide variety of fluids. The manifold for the VXA21/22 series is available in a common SUP style or individual SUP style (for vacuum use). The VXA31/32 series manifold is individual ported. Valves for both are easily replaced without changing existing piping.

•Direct air operated, 2 port valve for manifold
•N.C. or N.O. style
•Compatible with a wide variety of fluids
•Effective area mm2 (Cv): 6~19 (0.33~1.05)
•Max. system pressure (MPa): 1.0

Size: No.1
Orifice: 2 (3 Mm)
Style: 1 (Normally Closed)
Option: Brass Body, NBR Seal
