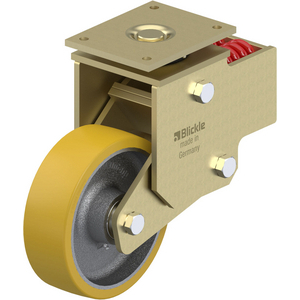

BLICKLE 285981 LSFN-GTH 252K-F30

Bracket: LSFN series

• particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
• robust spring structure with steel spring
• maintenance-free spring mechanism
• axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
• bolted and secured welded central kingpin, extremely strong
• dust and splash-proof
• grease nipple

Wheel: GTH series

• tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
• wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver

Other features:

• high chemical resistance to many aggressive substances
• operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
