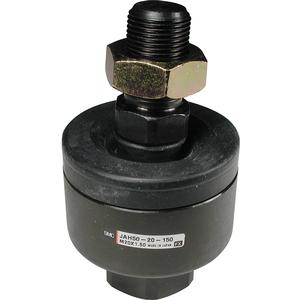

SMC JAHF50-20-150 HEAVY LOAD FLOATING JOINT

The floating joint series JA (standard) and JAH (heavy duty), can absorb any "off-centering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, centering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.

•Standard/Thread nominal size
•Heavy load type floating joint
•Mountings: basic, flange, foot
•Eleven sizes available
•Long life (with dustproof cover)
•Rotation angle: ¹5°

Mounting: F (Flange)
Applicable Bore Size: 50mm
Nominal Thread: 20-150 (M20 x 1.5)
Option: None
