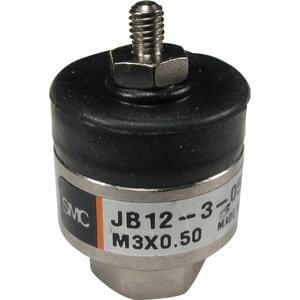

SMC JB12-3-050 FLOATING JOINT
JB Compensating Joints for Compact Cylinders
References
smc:JB12-3-050
rubix:118A7030
manufacturer :00050011
Product details : SMC JB12-3-050 FLOATING JOINT
The JB series floating joint was designed for compact cylinders. JB series is compact and is suitable for high tensile stresses. Long life is established with a dustproof cover and the rotation angle is ±5°.
Applicable Bore Size: 12 (12 mm)
Nominal Thread: 3-050 (M3 x 0.5)
Option: None
Nominal Thread: 3-050 (M3 x 0.5)
Option: None
Strengths
- Centering is no longer necessary.
- Does not require high machining accuracy.
- Reduced installation time.
- Compact and ideal for tensile stresses.
- Long service life (with dust protection)
- Angular backlash: ±5˚
- Does not require high machining accuracy.
- Reduced installation time.
- Compact and ideal for tensile stresses.
- Long service life (with dust protection)
- Angular backlash: ±5˚
Technical specifications
Attributes
| Type | Floating Joint |
|---|---|
| Connection 1 | M3 |
| Cylinder diameter | 12 mm |
Show UNSPSC/ECL@SS
£ 13.42 excl. VAT
/ Each
£ 16.10 incl. VAT
Delivery usually within ( 4 ) days
