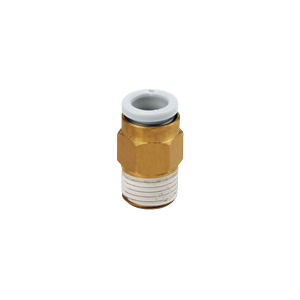

SMC KQ2H08-03S FITTING
KQ2H One-touch Fitting
References
smc:KQ2H08-03S
rubix:80200272
Technical specifications
| Connection 1 | R 3/8 |
|---|---|
| Connection 2 | 8 |
Product details : SMC KQ2H08-03S FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
Quick assembly/disassembly.
Applications
For vacuum and compressed air. Also suitable for water.
Technical specifications
Attributes
| Logistic Weight | 26 g |
|---|---|
| Connection 1 | R 3/8 |
| Connection 2 | 8 |
| Length | 20.9 mm |
| Type of threading | R |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | C3604;PBT;PP |
Show UNSPSC/ECL@SS
£ 2.85 excl. VAT
/ Each
£ 3.42 incl. VAT
Delivery usually within ( 21 ) days
