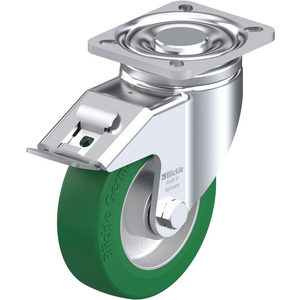

BLICKLE LH-ALST 125K-1-FI PRESSED STEEL SWIVEL CASTOR 125MM GREEN
Light duty swivel castor, with bolt hole fitting, with synthetic expander Nylon wheel
References
blickle:LH-ALST 125K-1-FI
rubix:224A5338
manufacturer :638163
ean:4047526638160
Technical specifications
| Load capacity | 370 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
Product details : BLICKLE LH-ALST 125K-1-FI PRESSED STEEL SWIVEL CASTOR 125MM GREEN
Bracket: LKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POA series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 2320 g |
|---|---|
| Load capacity | 370 kg |
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Green |
| Shore A Hardness | 75 Shore |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| 165 mm | |
| 40 mm |
Show UNSPSC/ECL@SS
£ 107.68 excl. VAT
/ Each
£ 129.22 incl. VAT
Usually arrives within 14 working days
