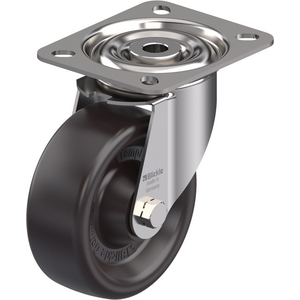

BLICKLELIX-PHN 102G PHENOLIC SWIVEL CASTORS
Light duty swivel castor, with bolt hole fitting, with synthetic expander, with brake system 'stop-fix' Wheel, with solid rubber tyres, with synthetic rim
References
blickle:LIX-PHN 102G
rubix:219A9059
manufacturer :580662
ean:4047526580667
Technical specifications
| Load capacity | 150 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 38 mm |
Product details : BLICKLELIX-PHN 102G PHENOLIC SWIVEL CASTORS
Bracket: LKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Technical specifications
Attributes
| Logistic Weight | 796 g |
|---|---|
| Load capacity | 150 kg |
| Wheel diameter | 100 mm |
| Wheel width | 38 mm |
| Wheel housing/rim material | Polymer |
| Running sole/tire material | Rubber |
| Shore D Hardness | 90 Shore |
| Type of bearing | Plain bore |
| Running sole / tire colour | Black |
| Min. temperature | -35 °C |
| Max. temperature | 260 °C |
| 125 mm | |
| 38 mm |
Show UNSPSC/ECL@SS
£ 106.18 excl. VAT
/ Each
£ 127.42 incl. VAT
Usually arrives within 14 working days
