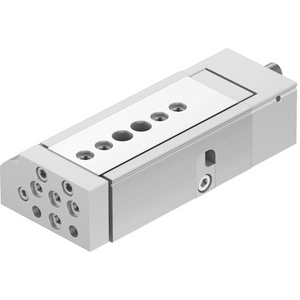

FESTO 570173 MINI SLIDE
Mini slide, metric DGSL
References
festo:DGSL-10-20-EA
rubix:390A6892
manufacturer :570173
ean:4052568216689
Technical specifications
| Type | mini slide |
|---|---|
| Cylinder diameter | 12 mm |
Product details : FESTO 570173 MINI SLIDE
Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit
Strengths
- High load capacity and positioning accuracy
- Maximum movement precision thanks to ground-in ball bearing cage guide
- Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
- Variants with clamping unit or end-position locking for fixing the guide slide
- Wide variety of mounting and attachment options
- Compact design
Technical specifications
Attributes
| Logistic Weight | 569,03 g |
|---|---|
| Type | mini slide |
| Cylinder diameter | 12 mm |
| Min. temperature | 0 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 20 mm |
| Max. service pressure | 8 bar |
| Fixation centre-to-centre distance | 10 mm |
| Design size | 12 |
Show UNSPSC/ECL@SS
£ 433.98 excl. VAT
/ Each
£ 520.78 incl. VAT
Usually arrives within 14 working days
