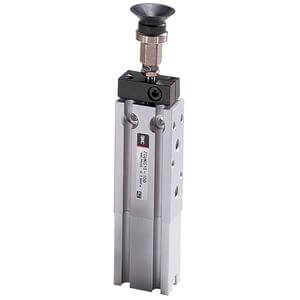

The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.

ZC(D)UK, Free Mount Cylinder w/Vacuum Pad

Technical specifications

Attributes

Logistics dimensions (L x W x H)	146x32x20 mm
Logistic Weight	163 g
Cylinder diameter	16 mm
Cylinder stroke	30 mm
Type	Mount Cylinder
Min. temperature	-10 °C
Max. temperature	70 °C

Show UNSPSC/ECL@SS

£ 109.90 ^{excl. VAT}

/ Each

£ 131.88 ^{incl. VAT}

Usually arrives within 14 working days
