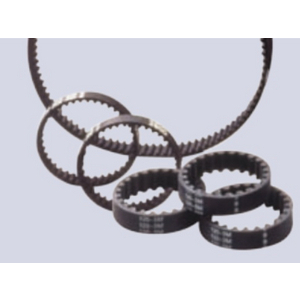

Rubber synchronous belt with HTD tooth profile. The tensile cords provide the required strength, but are at the same time, extremely flexible and stretch resistant. Special round teeth improve the load distribution and permit a heavier loading. Economical in use. Lubrication and post-tensioning as a result of stretch and wear are unnecessary.

Strengths

• Long and trouble-free service life.
• Large power range and a large number of speed ratios.

Technical specifications

Attributes

Profile	5M
Primitive length	120 mm
Belt width	9 mm
Pitch	5 mm
Material	CR
Number of teeth	24
Height	3.8 mm

Show UNSPSC/ECL@SS

£ 5.40 ^{excl. VAT}

/ Each

£ 6.48 ^{incl. VAT}

Usually arrives within 14 working days

GATES HTDBELT 5M PITCH HTD 120 5M 9

Product details : GATES HTDBELT 5M PITCH HTD 120 5M 9
