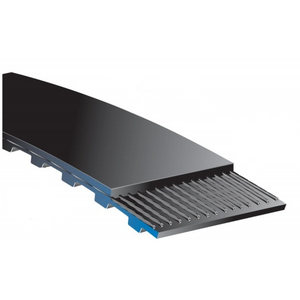

GATES TIMING BELT L PITCH 322 L 100
PowerGrip Timing Belt
References
gates:322 L 100
rubix:102A7365
manufacturer :9257-33032
ean:5412571224955
Technical specifications
| Profile | L |
|---|---|
| Primitive length | 32.2 '' |
| Belt width | 25.4 mm |
Product details : GATES TIMING BELT L PITCH 322 L 100
Strengths
•Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation
Neoprene body provides protection against grime, grease, oil, moisture, and other contaminants
Nylon tooth facing provides a durable wear surface for long service life
Neoprene body provides protection against grime, grease, oil, moisture, and other contaminants
Nylon tooth facing provides a durable wear surface for long service life
Technical specifications
Attributes
| Profile | L |
|---|---|
| Primitive length | 32.2 '' |
| Belt width | 25.4 mm |
| Pitch | 9.52 mm |
| Material | Fiberglass (Tensile Cord);Neoprene (Body);Nylon (Tooth Facing) |
| Number of teeth | 86 |
| Height | 3.5 mm |
| Primitive length (mm) | 817.88 mm |
Show UNSPSC/ECL@SS
£ 19.63 excl. VAT
/ Each
£ 23.56 incl. VAT
In stock: Next day delivery
