M geometry is an excellent chip breaker for medium maching up to semi roughing of Steel and Cast iron. The insert is positive allowing for a smooth cutting action reducing vibration and machine load. Insert ADMX -M for milling. Very positive geometry for medium-finishing with light and medium machining conditions on material groups P and M, secondary application K and supplementary S. Coating PVD M8340, main application class ISO P35, M30, S35, secondary K30, H20

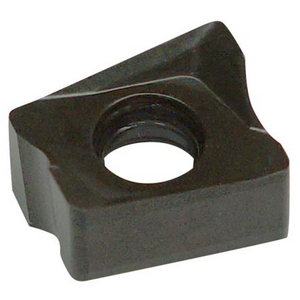

Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E
Strengths
Wear resistant type H submicron substrate
Multilayer coating system for enhanced toughness
Reduces the occurrence and spreading of comb micro cracks
Larger chip cross-sections, wide range of cutting speeds
Unstable working conditions
