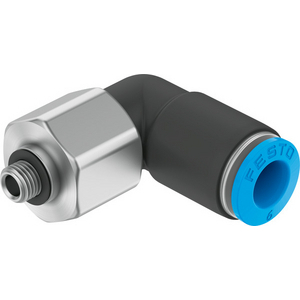

FESTO 153530 PUSH-IN L-FITTING, ROTATABLE QSRL-M5-6
Push-in L-fitting, rotatable
References
festo:QSRL-M5-6
rubix:4524476
manufacturer :153530
ean:4052568035075
Technical specifications
| Material | Nickel-Plated Brass (Screwed Plug);PBT (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp) |
|---|---|
| Connection 1 | M5 |
Product details : FESTO 153530 PUSH-IN L-FITTING, ROTATABLE QSRL-M5-6
Push-in L-fitting, rotatable QSRL-M5-6 360° rotatable, with ball bearing, male thread with external Hexagon. Size=Standard, Nominal size=1,6 mm, Type of seal on screw-in stud=Sealing ring, Assembly Position=Any, Container size=1
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 30x30x15 mm |
|---|---|
| Logistic Weight | 20,4 g |
| Material | Nickel-Plated Brass (Screwed Plug);PBT (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp) |
| Connection 1 | M5 |
| Profile | QSRL |
| Connection 2 | 6 mm |
| Min. temperature | 0 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 18.87 excl. VAT
/ Each
£ 22.64 incl. VAT
In stock: Next day delivery
