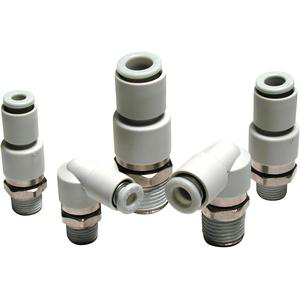

Rotary one-touch fitting series KX comes with double ball race bearing for high speed applications. KX series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KX is suitable for pressure or vacuum applications.

Model: H (Male Connector)
Applicable Tube OD: Ø6
Port Size: 01 [R(PT)1/8]
Sealant: S (Sealant)

Technical specifications

Attributes

Logistic Weight	18 g
Connection 1	6 mm
Connection 2	R 1/8 in
Length	41.1 mm
Type of threading	R
Connecting diameter	R 1/8 ''
Metric exterior tube diameter	6 mm
Threading	R 1/8 in
Max. temperature	60 °C
Min. temperature	-5 °C
Type of fluid	Air
Material	PBT

Show UNSPSC/ECL@SS

£ 41.33 ^{excl. VAT}

/ Each

£ 49.60 ^{incl. VAT}

Delivery usually within ( 4 ) days

SMC KXH06-01S FITTING

Product details : SMC KXH06-01S FITTING

Technical specifications
