SMC KXH08-01S FITTING
Rotary Fitting Series KX
References
smc:KXH08-01S
rubix:2606341
Technical specifications
| Connection 1 | 8 mm |
|---|---|
| Connection 2 | R 1/8 in |
Product details : SMC KXH08-01S FITTING

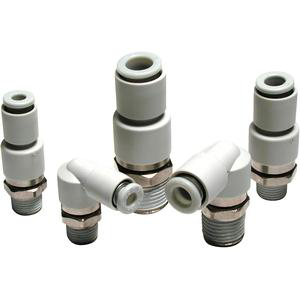

Rotary one-touch fitting series KX comes with double ball race bearing for high speed applications. KX series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KX is suitable for pressure or vacuum applications.
Model: H (Male Connector)
Applicable Tube OD: Ø8
Port Size: 01 [R(PT)1/8]
Sealant: S (Sealant)
Applicable Tube OD: Ø8
Port Size: 01 [R(PT)1/8]
Sealant: S (Sealant)
Technical specifications
Attributes
| Logistic Weight | 20 g |
|---|---|
| Connection 1 | 8 mm |
| Connection 2 | R 1/8 in |
| Length | 45.1 mm |
| Type of threading | R |
| Connecting diameter | R 1/8 '' |
| Metric exterior tube diameter | 8 mm |
| Threading | R 1/8 in |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Type of fluid | Air |
| Material | PBT |
Show UNSPSC/ECL@SS
£ 49.43 excl. VAT
/ Each
£ 59.32 incl. VAT
Delivery usually within ( 4 ) days
