NBR15X24X5AS METRIC ROTARY SHAFT SEAL NITRILE AS (R23)
Rotary Shaft Seal
References
dichtomatik:NBR15X24X5AS:TTO
rubix:45033859
Technical specifications
| Inner diameter | 15 mm |
|---|---|
| Outer diameter | 24 mm |
| Width | 5 mm |
Product details : NBR15X24X5AS METRIC ROTARY SHAFT SEAL NITRILE AS (R23)

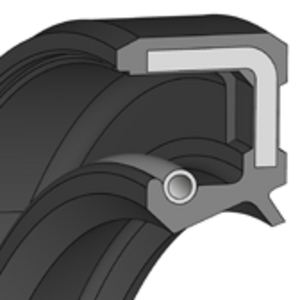

Rotary shaft seal in standard design referring to DIN 3760/ISO 6194 with an elastomer outer sheath covering a metal insert as well as a spring-energised sealing lip.
Strengths
The elastomer outer sheath provides good static sealing, good thermal expansion balance e.g. in light-metal housings, better sealing with greater roughness and secure sealing for split housings as well as good static sealing with thin fluid or gaseous media.
Good chemical resistance to many mineral oils and greases.
Good chemical resistance to many mineral oils and greases.
Applications
Sealing of rotating machine elements such as shafts, hubs and axles.
Technical specifications
Attributes
| Inner diameter | 15 mm |
|---|---|
| Outer diameter | 24 mm |
| Width | 5 mm |
| Material | NBR |
Show UNSPSC/ECL@SS
£ 0.60 excl. VAT
/ Each
£ 0.72 incl. VAT
In stock: Next day delivery
