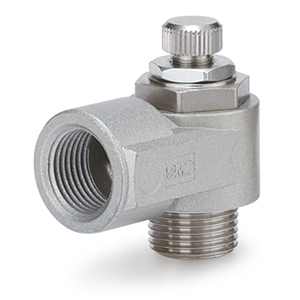

SMC AS2200-01-S SPEED CONTROLLER
Speed Controller
References
smc:AS2200-01-S
rubix:122A4038
Product details : SMC AS2200-01-S SPEED CONTROLLER
Lightweight, compact, and precision control make these flow controls the right choice for many heavy-duty applications. These flow controls are offered with in-line and elbow construction to give the widest choice to your unique application. Locking nuts are included as standard as well as simplified mounting. Thread sizes range from M3 to 2 and are available in both inch (NPT) and metric R/Rc(PT)
•Port Size: M3, M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
•Operating Pressure Range: 0.1 to 1 MPa.
Size: 2 (1/8, 1/4 Basis)
Style: 2 (Elbow)
Control Method: 0 (Meter-out)
Port Size: 01 (1/8)
Option: S (Sealant)
Made to Order: None
Lock Nut: Standard (Hexagon)
•Operating Pressure Range: 0.1 to 1 MPa.
Size: 2 (1/8, 1/4 Basis)
Style: 2 (Elbow)
Control Method: 0 (Meter-out)
Port Size: 01 (1/8)
Option: S (Sealant)
Made to Order: None
Lock Nut: Standard (Hexagon)
Strengths
•Large flow in-line style
Technical specifications
Attributes
| Threading | 1/8 in |
|---|---|
| Material | Electroless Nickel Plated Brass (Body);Nitrile-Butadiene Rubber (O-Ring);Electroless Nickel Plated Brass (Handle);Hydrogenated Nitrile-Butadiene Rubber (U-Seal);Electroless Nickel Plated Brass (Needle);Chromium Bearing Steel (Ball);Polyvinyl Chloride (Gasket);Electroless Nickel Plated Brass (Joint) |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
Show UNSPSC/ECL@SS
£ 19.24 excl. VAT
/ Each
£ 23.09 incl. VAT
Delivery usually within ( 4 ) days
