SKF SPHER ROLLER BEARING 23034 CC/C4W33
Spherical Roller Bearing
References
skf:23034 CC/C4W33
rubix:105A1792
manufacturer :35668
ean:7316577039699
Technical specifications
| Inner diameter | 170 mm |
|---|---|
| Outer diameter | 260 mm |
| Width | 67 mm |
Product details : SKF SPHER ROLLER BEARING 23034 CC/C4W33

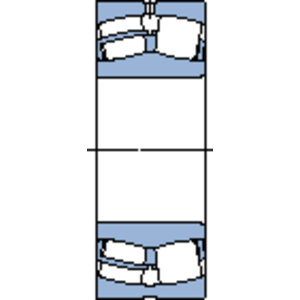

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 67x260x260 mm |
|---|---|
| Logistic Weight | 12499,9 g |
| Inner diameter | 170 mm |
| Outer diameter | 260 mm |
| Width | 67 mm |
| Bearing Clearance | C4 |
| Series | 230C |
| Reference speed | 2200 rpm |
| Limit speed | 2800 rpm |
| Basic static load, radial - C0r | 1060000 N |
| Basic dynamic load, radial - Cr | 621000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 814.16 excl. VAT
/ Each
£ 976.99 incl. VAT
Usually arrives within 14 working days
