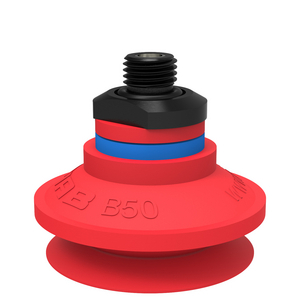

PIAB B50.20.05AB CUP 0101631
Suction cup B50-2
References
piab:0101631
rubix:120A2444
Technical specifications
| Material | Silicone (SIL) |
|---|---|
| Diameter | 50 mm |
| Shape | Bellow |
Product details : PIAB B50.20.05AB CUP 0101631
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items.
Strengths
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates
- Lifting movement to separate small and thin objects
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement
- With mesh filter
Applications
Plastic Injection Molded Parts, Dry Sheet Metal
Technical specifications
Attributes
| Material | Silicone (SIL) |
|---|---|
| Diameter | 50 mm |
| Shape | Bellow |
| Type | B |
Show UNSPSC/ECL@SS
£ 37.95 excl. VAT
/ Each
£ 45.54 incl. VAT
Usually arrives within 14 working days
