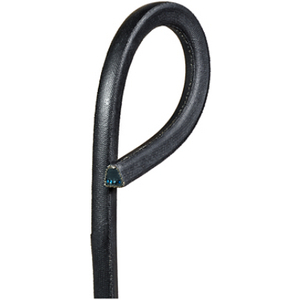

GATES 933902098 SUPER HC V-BELT SPB2098

SuperHC SPB

See technical information

References

Gates:SPB2098 SUPERHC
Rubix:270A0161
Manufacturer :933902098
EAN:5414465674181
brand logo

Technical specifications

Profilespb
Upper width16.3 mm
Pitch length2098 mm
See all Specifications

Product details : GATES 933902098 SUPER HC V-BELT SPB2098


Wrapped V-belt with a narrow profile. The oil and heat resistant Flex-Weave® wrapping protects the core of the belt against the most extreme conditions. The vulcanised ' flex-bonded ' tensile cords offer superior resistance to bending and tensile forces, fatigue and shock loading. More power in the same space or the same power and space savings of up to 50%.

Strengths

• Oil and heat resistant.
• Static conductive (ISO 1813).
• Complies with ATEX standards.
• UNISET tuning system.

Technical specifications


Attributes
Profilespb
Upper width16.3 mm
Pitch length2098 mm
Interior length2038 mm
Outer length2120 mm
Thickness13 mm
Sheathedyes
Seriessuper hc
Materialcr
Min. Operation temperature-30 °C
Max. Operation temperature60 °C
Minimum Pulley Diameter160 mm
£ 29.26 excl. VAT
/ Each
£ 35.11 incl. VAT
  • Usually arrives within 14 working days
