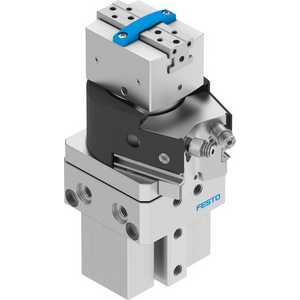

FESTO 1187955 SWIVEL/GRIPPER UNIT
Swivel/Gripper Unit
References
festo:HGDS-PP-12-P-A-B
rubix:391A2354
manufacturer :1187955
ean:4052568228194
Technical specifications
| Type | swivel/gripper unit |
|---|
Product details : FESTO 1187955 SWIVEL/GRIPPER UNIT
swivel/gripper unit HGDS-PP-12-P-A-B With flexible cushioning Size=12, Rotation angle adjustment range=0 - 210 deg, Stroke per gripper jaw=2,5 mm, Max. angular gripper jaw backlash ax,ay=0,1 deg, Max. gripper jaw backlash Sz=0,02 mm
swivel/gripper unit HGDS-PP-12-P-A-B With flexible cushioning Size=12, Rotation angle adjustment range=0 - 210 deg, Stroke per gripper jaw=2,5 mm, Max. angular gripper jaw backlash ax,ay=0,1 deg, Max. gripper jaw backlash Sz=0,02 mm
Technical specifications
Attributes
| Type | swivel/gripper unit |
|---|---|
| Min. temperature | 5 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 12 mm |
Show UNSPSC/ECL@SS
£ 1,390.38 excl. VAT
/ Each
£ 1,668.46 incl. VAT
Usually arrives within 14 working days
