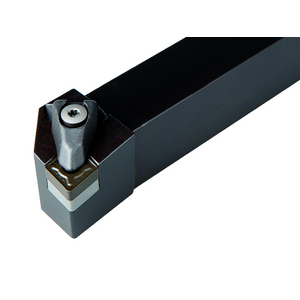

PRAMET DCLNR 1616 H 12 TURNING TOOL WITH ISO-D CLAMPING RIGHT HAND
Tool Holder
References
pramet:DCLNR 1616 H 12
rubix:2591524
Technical specifications
| Total length | 100 mm |
|---|---|
| Width | 16 mm |
| Height | 16 mm |
Product details : PRAMET DCLNR 1616 H 12 TURNING TOOL WITH ISO-D CLAMPING RIGHT HAND
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Technical specifications
Attributes
| Total length | 100 mm |
|---|---|
| Width | 16 mm |
| Height | 16 mm |
| Head length | 32.2 mm |
Show UNSPSC/ECL@SS
£ 74.50 excl. VAT
/ Each
£ 89.40 incl. VAT
Usually arrives within 14 working days
