WALTER ROUTING CUTTERS M4792-030-W32-01-20
Walter Drill Bit
References
walter titex:M4792-030-W32-01-20
rubix:2593846
manufacturer :6822368
Technical specifications
| Diameter | 32 mm |
|---|---|
| Type of tail | Round |
| Tail diameter | 32 mm |
Product details : WALTER ROUTING CUTTERS M4792-030-W32-01-20

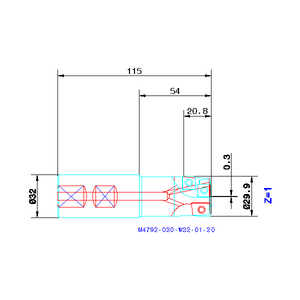

2 or 4 cutting edges per indexable insert · Supplied without indexable insert · Further technical characteristics l4: 54mm · Lc: 20.8mm · Weight: 0.574kg · Z: 1 · Number of inserts: 1 · l1: 115mm · Dc: 29.9mm · Tool name Designation: M4792-030-W32-01-20.
Technical specifications
Attributes
| Diameter | 32 mm |
|---|---|
| Type of tail | Round |
| Tail diameter | 32 mm |
| Number of teeth | 1 |
| Length of cut | 20.8 mm |
| Total length | 115 mm |
| Angle of helix | 25 ° |
| Machining material | Steel;Stainless Steel;Cast Iron;Special Alloy |
| Centre cut | Yes |
| Tolerance | h6 |
| Type | Drill Bit |
| Capacity length | 54 mm |
| Cutting angle | 90 ° |
| Body material | Carbide |
Show UNSPSC/ECL@SS
£ 243.62 excl. VAT
/ Each
£ 292.34 incl. VAT
Delivery within 10-15 business days
