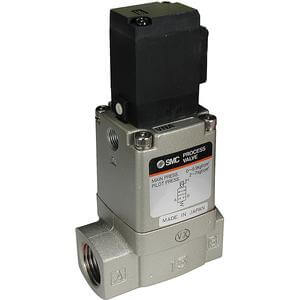

SMC VNA611A-F40A-5DZ-Q 2 PORT PROCESS VALVE
2-Way Pressure Valve
References
smc:VNA611A-F40A-5DZ-Q
rubix:392A4612
Product details : SMC VNA611A-F40A-5DZ-Q 2 PORT PROCESS VALVE
The VN series is a combination of process valves that can be operated with pressure differential zero and comes with many variations. The VNA series is used for controlling pneumatic systems or air-hydro circuits. The VNB series controls various fluids. VNC is used for controlling the cutting oils and coolants used in machine tools. VNH is for controlling high pressure cutting oils and coolants used in machine tools, and the VND series is for steam control.
Strengths
•Fluid:air; CO 2 ; nitrogen gas; freon 11, 113, 114;
turbine oil, hydraulic fluid, argon, helium
Proof pressure: 1.5MPa
Operating pressure range: 0 to 1MPa
Effective area: 13 to 770mm 2
Coil rated voltage: AC(50/60Hz) 100V, 200V, others (option);
DC 24V, others (option)
Ambient temperature: -5 to 60C (no freezing
turbine oil, hydraulic fluid, argon, helium
Proof pressure: 1.5MPa
Operating pressure range: 0 to 1MPa
Effective area: 13 to 770mm 2
Coil rated voltage: AC(50/60Hz) 100V, 200V, others (option);
DC 24V, others (option)
Ambient temperature: -5 to 60C (no freezing
Technical specifications
Attributes
| Logistic Weight | 2200 g |
|---|---|
| Type | port valve |
| Connecting diameter (inch) | 1-1/2 '' |
| Type of coupling | g |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 255.28 excl. VAT
/ Each
£ 306.34 incl. VAT
Usually arrives within 14 working days
